WOLF ONE
WOLF ONE is a precision camera sync system made up of daisy-chaining nodes.

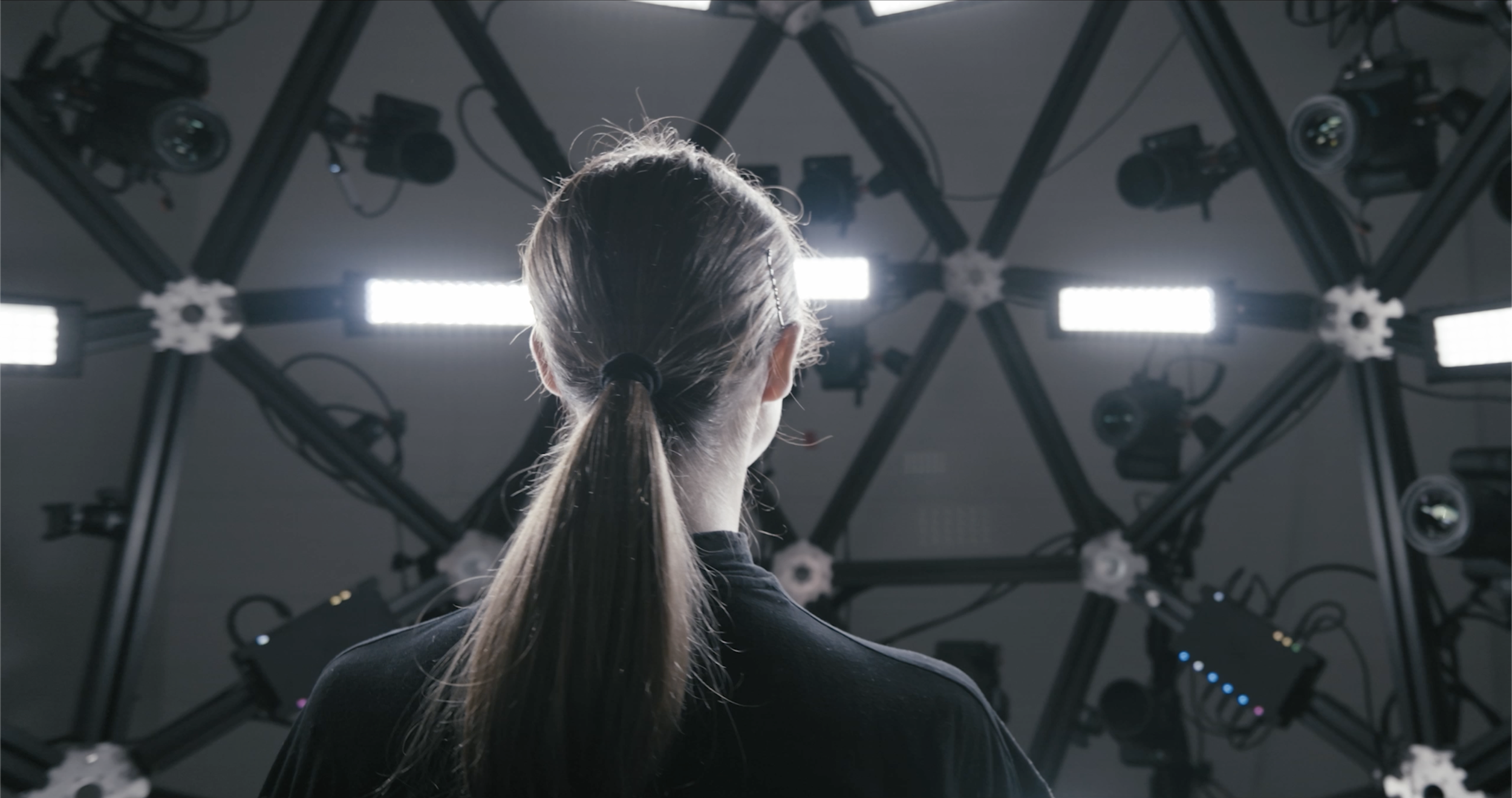

WOLF ONE was built from the ground up for photogrammetry, bullet time, lab work, and FX. It has all the tools you need to take you from a multi-camera concept to a final product all while being flexible in the lab and reliable on-set.
The self-contained system scales from 1 camera up to 192 cameras with one daisy chained connection.
WOLFONE features
Precise timing. automated camera calibration. self-contained architecture. Realtime user feedback
WOLFONE is powered by HowlNET
Power, Data, and Sync in one daisy-chained cable. Drop-in hardware replacement. Intelligent reprogramming when devices are connected or removed.
HowlNET is configured with Leash
Powerful effect building app. Control all nodes from a single usb connection. Full MacOS & Windows Desktop support.
🚨 Free shipping (Contiguous United States)
🚨 Use code BEORAY at checkout for free shipping on your entire order
🚨 Ships within 3-5 business days
Contact us for Volume pricing
WOLF ONE is a precision camera sync system made up of daisy-chaining nodes.
WOLF ONE was built from the ground up for photogrammetry, bullet time, lab work, and FX. It has all the tools you need to take you from a multi-camera concept to a final product all while being flexible in the lab and reliable on-set.
The self-contained system scales from 1 camera up to 192 cameras with one daisy chained connection.
WOLFONE features
Precise timing. automated camera calibration. self-contained architecture. Realtime user feedback
WOLFONE is powered by HowlNET
Power, Data, and Sync in one daisy-chained cable. Drop-in hardware replacement. Intelligent reprogramming when devices are connected or removed.
HowlNET is configured with Leash
Powerful effect building app. Control all nodes from a single usb connection. Full MacOS & Windows Desktop support.
🚨 Free shipping (Contiguous United States)
🚨 Use code BEORAY at checkout for free shipping on your entire order
🚨 Ships within 3-5 business days
Contact us for Volume pricing
WOLF ONE is a precision camera sync system made up of daisy-chaining nodes.
WOLF ONE was built from the ground up for photogrammetry, bullet time, lab work, and FX. It has all the tools you need to take you from a multi-camera concept to a final product all while being flexible in the lab and reliable on-set.
The self-contained system scales from 1 camera up to 192 cameras with one daisy chained connection.
WOLFONE features
Precise timing. automated camera calibration. self-contained architecture. Realtime user feedback
WOLFONE is powered by HowlNET
Power, Data, and Sync in one daisy-chained cable. Drop-in hardware replacement. Intelligent reprogramming when devices are connected or removed.
HowlNET is configured with Leash
Powerful effect building app. Control all nodes from a single usb connection. Full MacOS & Windows Desktop support.
🚨 Free shipping (Contiguous United States)
🚨 Use code BEORAY at checkout for free shipping on your entire order
🚨 Ships within 3-5 business days
Contact us for Volume pricing
Specifications
-

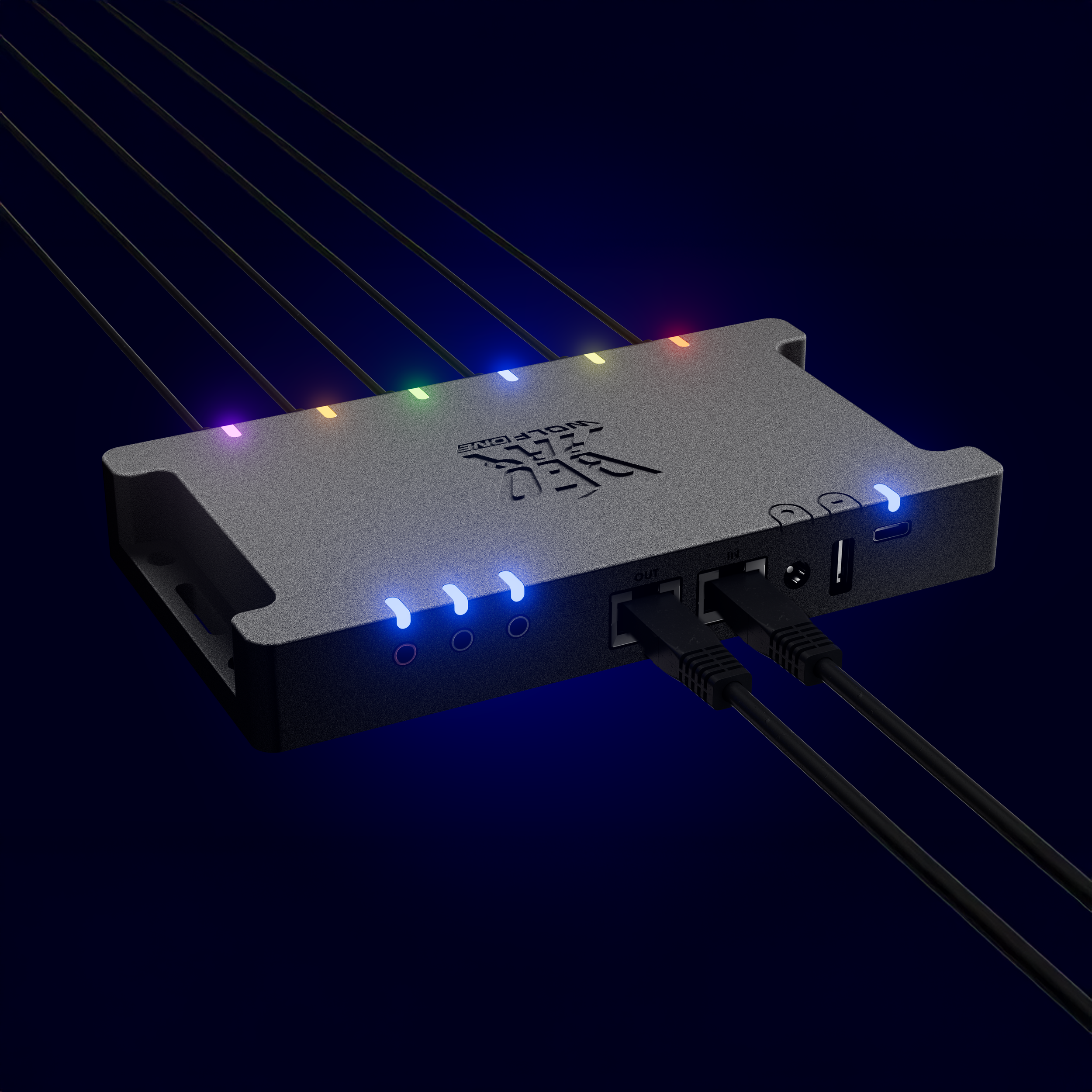

Beoray Wolf One node
USB-A to USB-C cable
Exposure cable
Beoray Leash Desktop app (download sent separately)
-
6 camera outputs per node (2.5mm trs)
2 mono outputs per node (3.5mm ts)
1 input per node (3.5mm trs)
USB Type-C input (5v power and communication)
Barrel Plug (power input)
USB Type-A (usb host for connection to supported accessories)
HowlNET IN port (RJ45)
HowlNET OUT port (RJ45)
Mounting holes
-
Beoray Leash Desktop app included
MacOS Compatible (Apple Silicon only)
Windows 10+ Compatible
-
Expand with HowlNET
100 m (328ft) length
32 nodes per system
192 cameras
64 mono outputs
32 inputs
Barrel Plug Power
24V 2A Max
Wolf One node power consumption
~3 watt peak
Event timing
Accuracy: +/- 10us
Resolution: 300us
-
